SPST67

South Pole Telescope Design
8 December 2003

South Pole Telescope Design

SPST129 summary

The following figures show the properties of SPST67

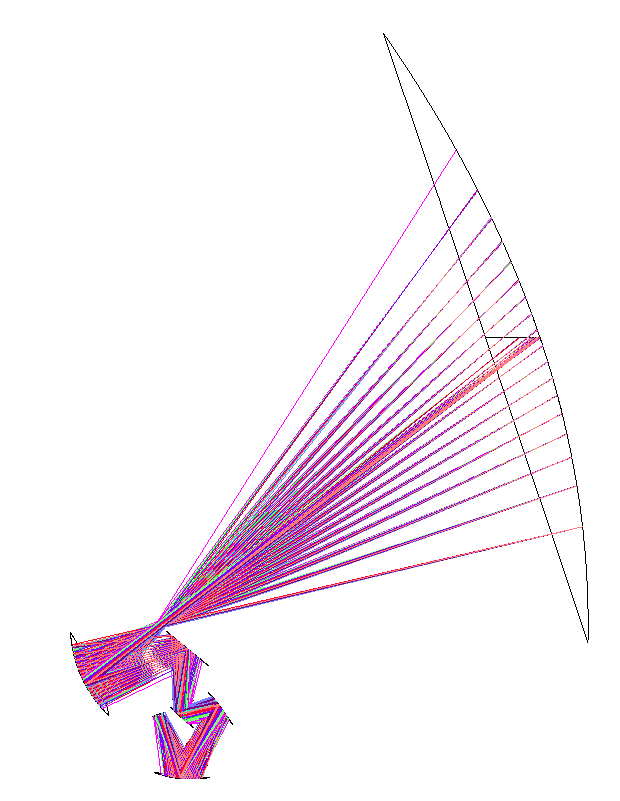

	Figure 1 Side view of design, all fields. An x-y fan of rays from all 12 fields are shown.
	Figure 2 Enlargement of secondary and dewar, all 12 fields .

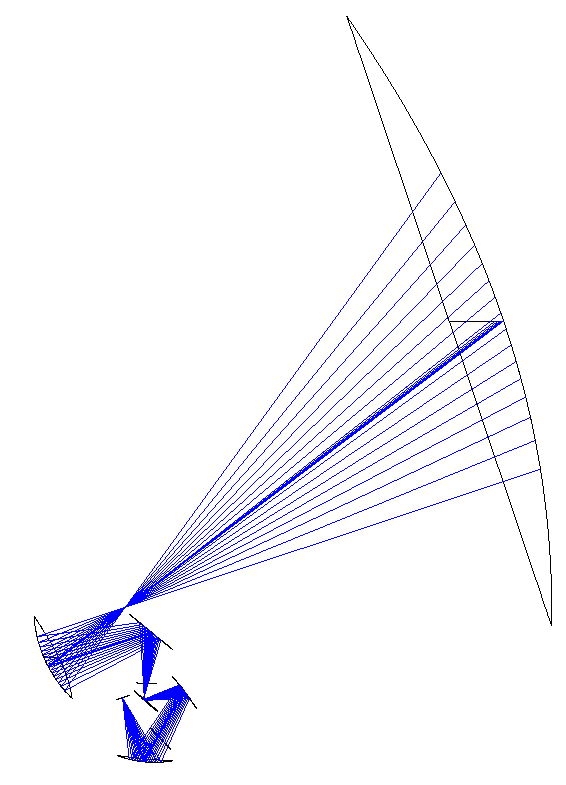

	Figure 3 Same as Figure 1, but only central field is shown

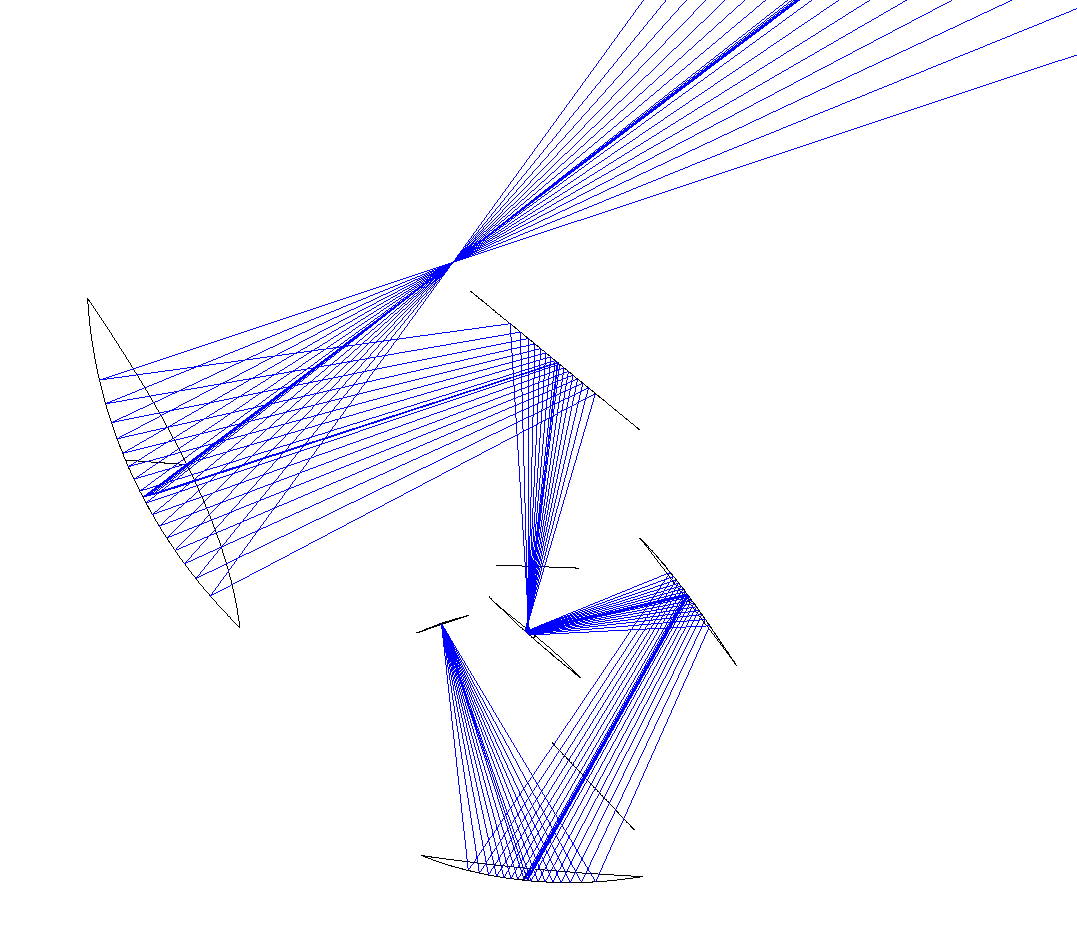

	Figure 4 Same as Figure 2, but only central field is shown

Figure 5 Star's view of telescope, central field only

	Figure 6 Same as Figure 5, enlargement of secondary and dewar
	Figure 7 Point spread function, x-plane cross-section, central field, linear scale

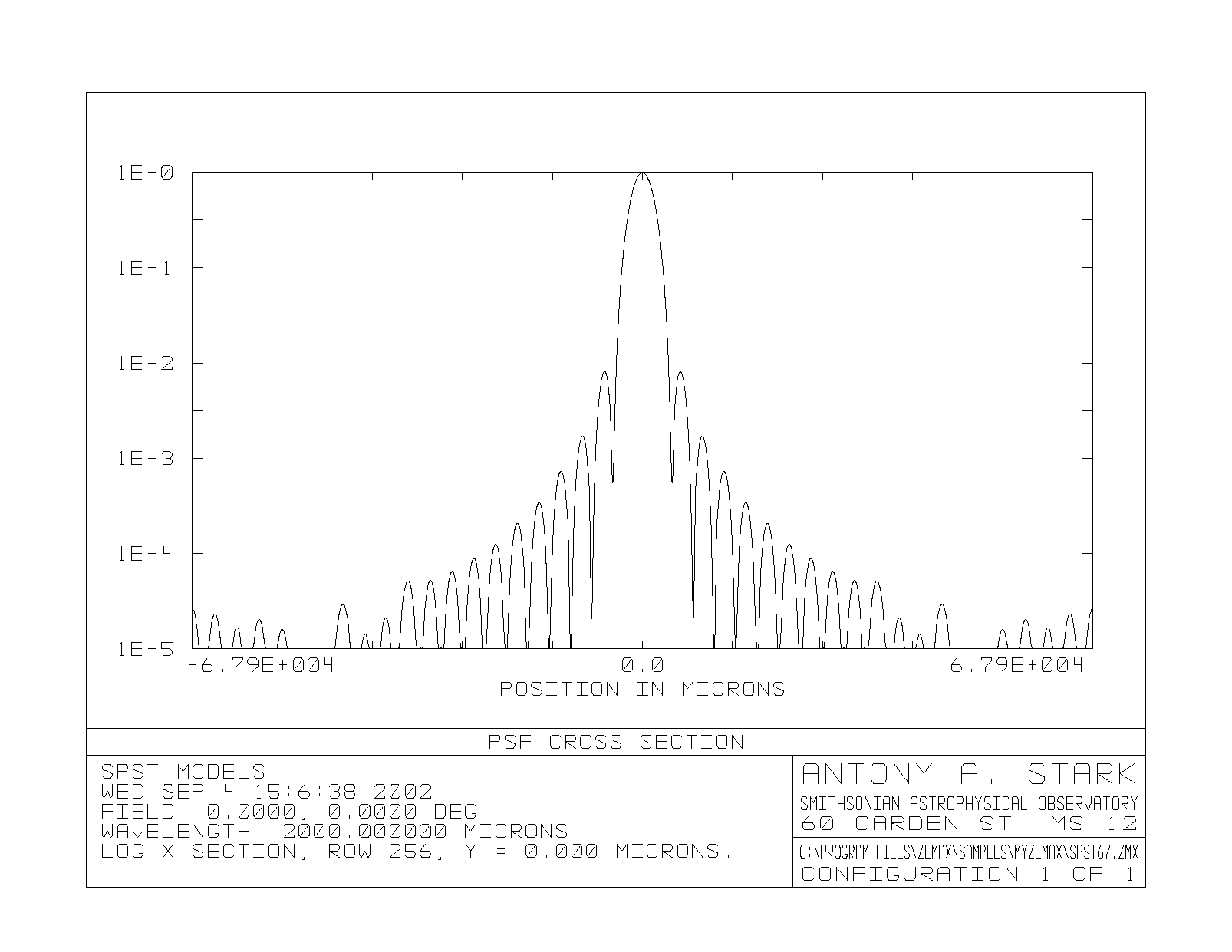

	Figure 8 Point spread function, x-plane cross-section, central field, log scale

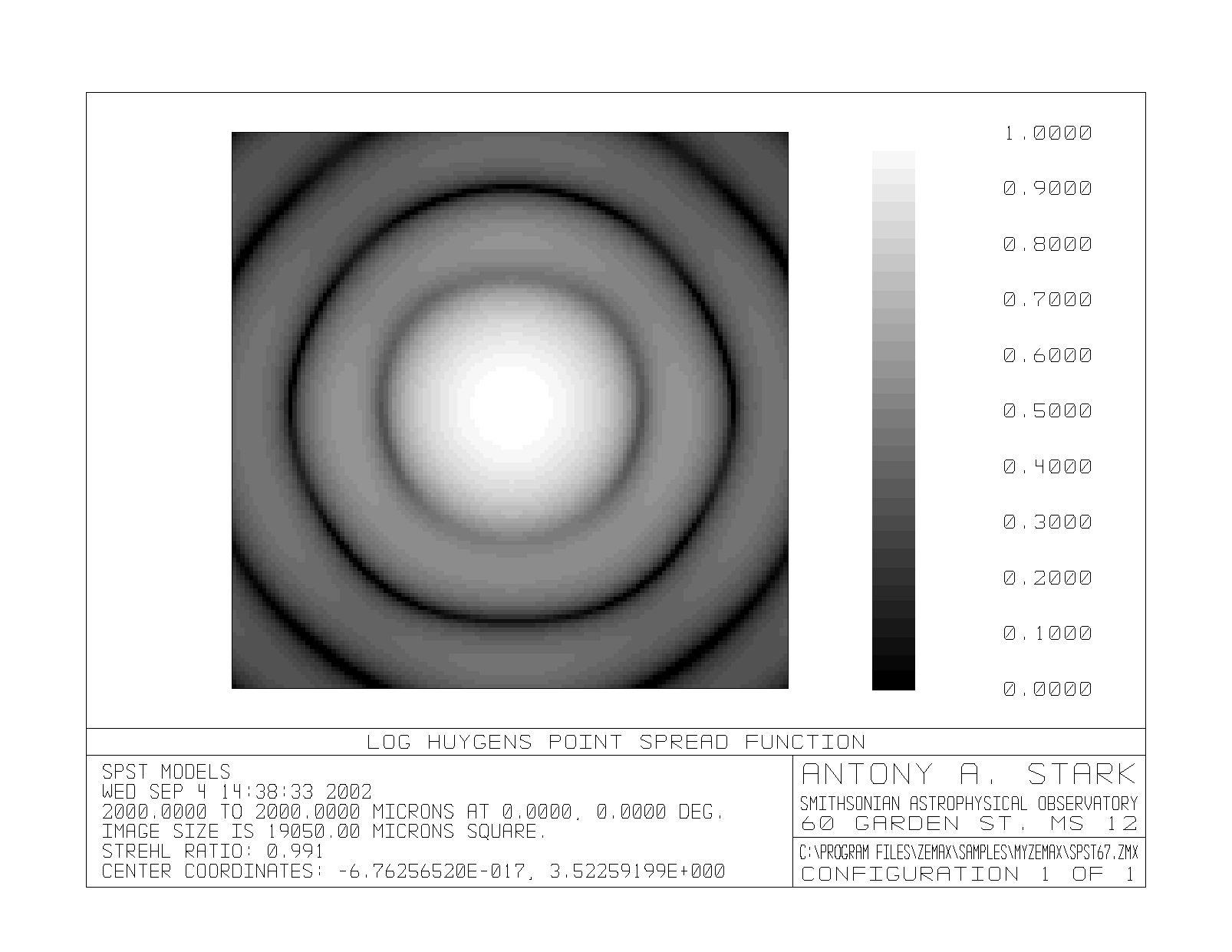

	Figure 9 Point spread function, central field, log scale

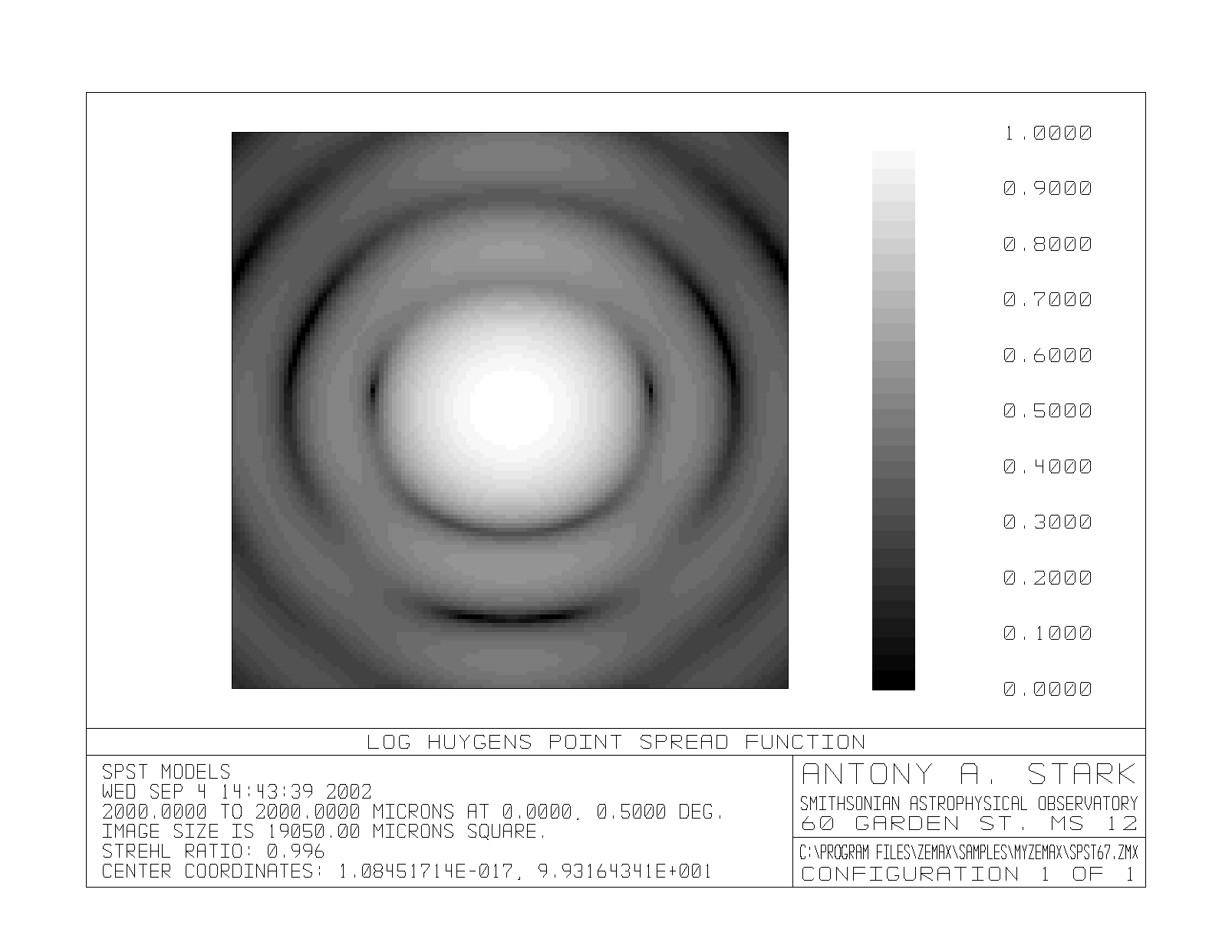

	Figure 10 Point spread function, field 5, log scale

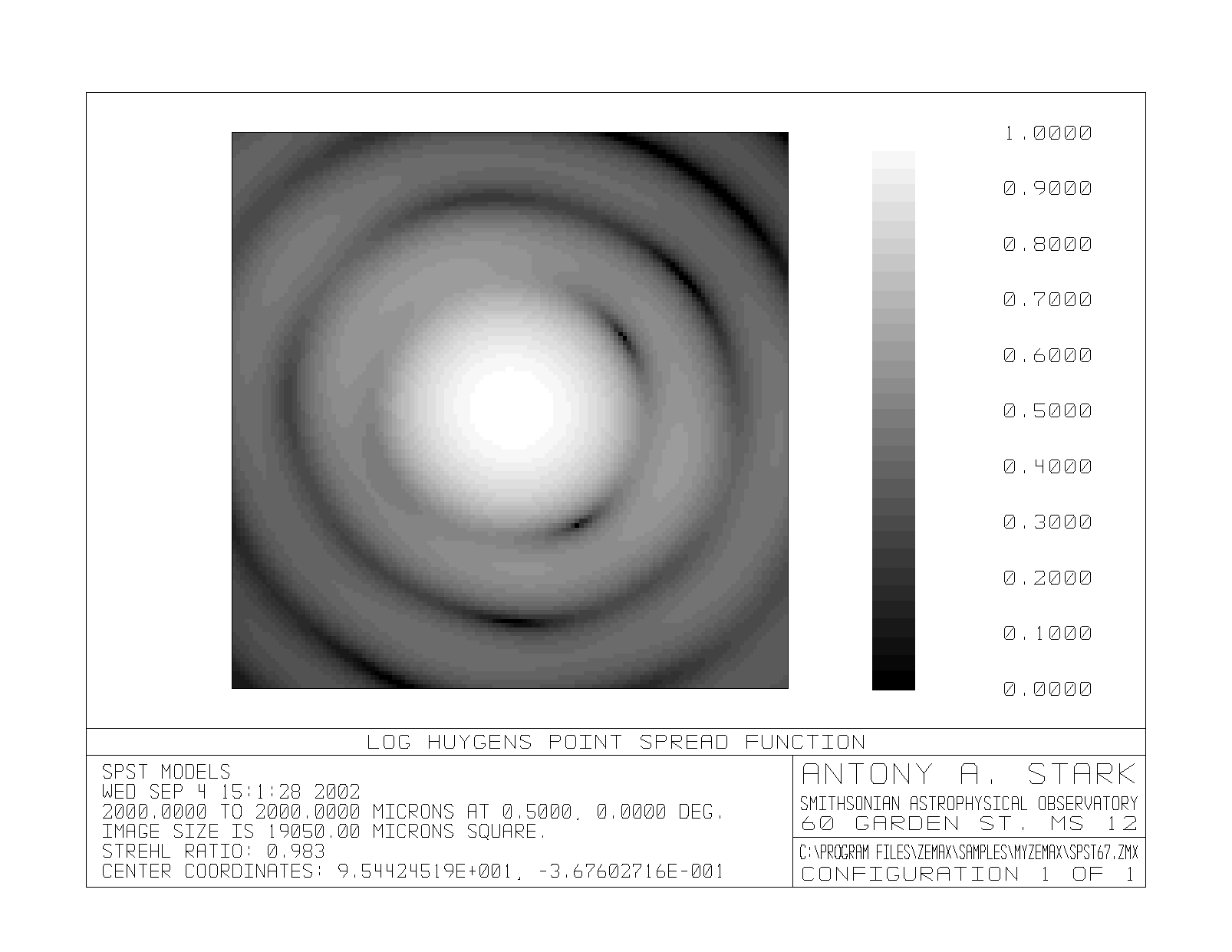

	Figure 11 Point spread function, field 10, log scale

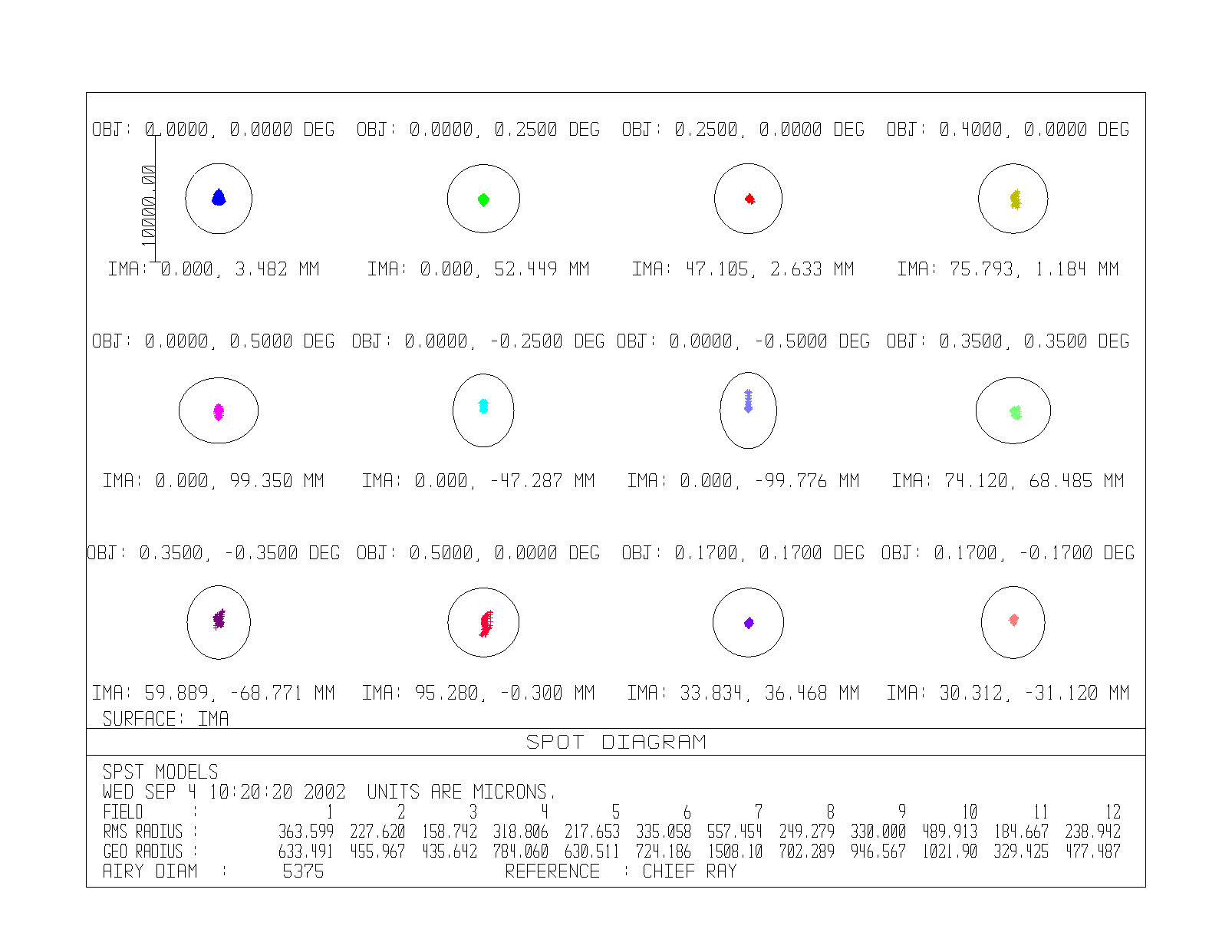

	Figure 12 Spot diagram
	Figure 13 Full field spot diagram

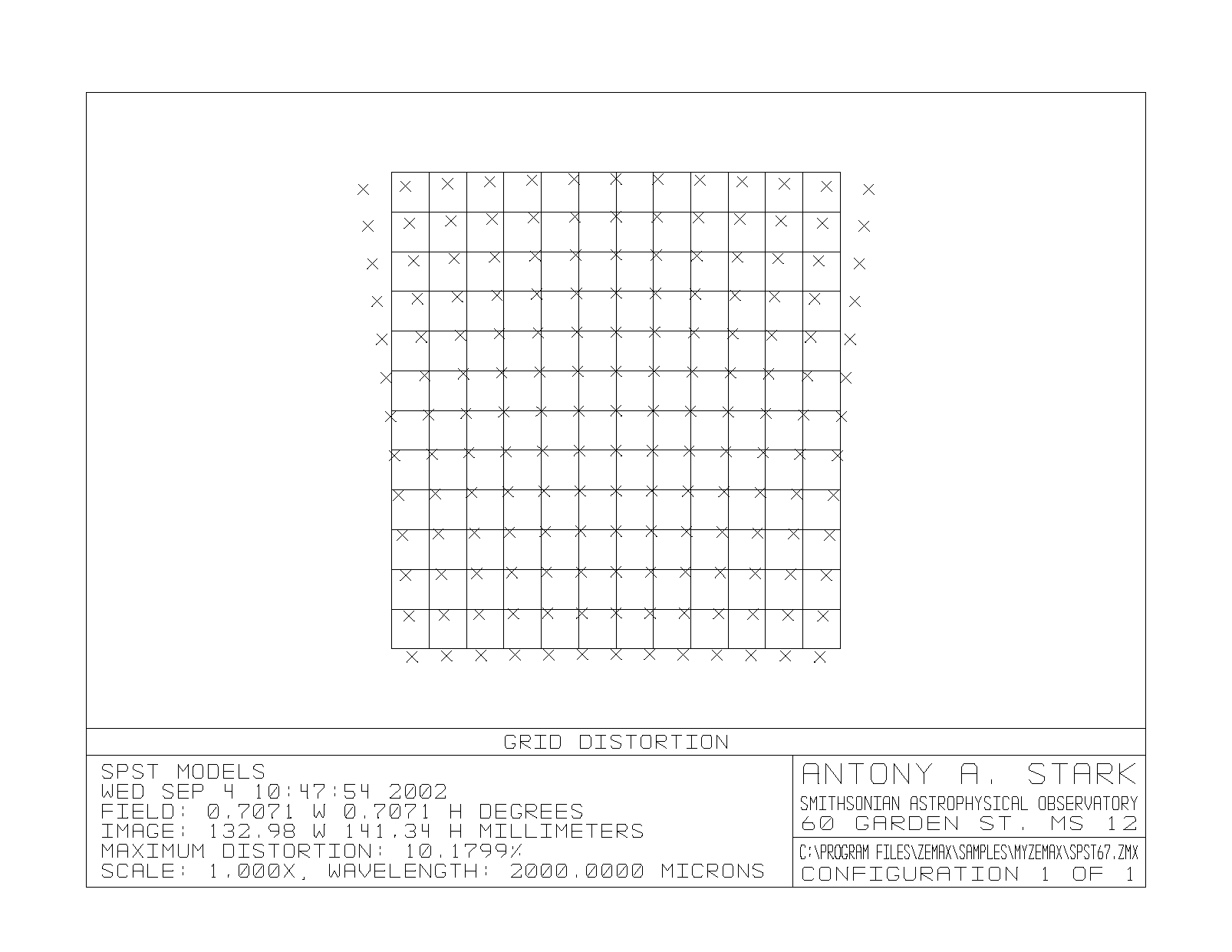

	Figure 15 Image distortion map.

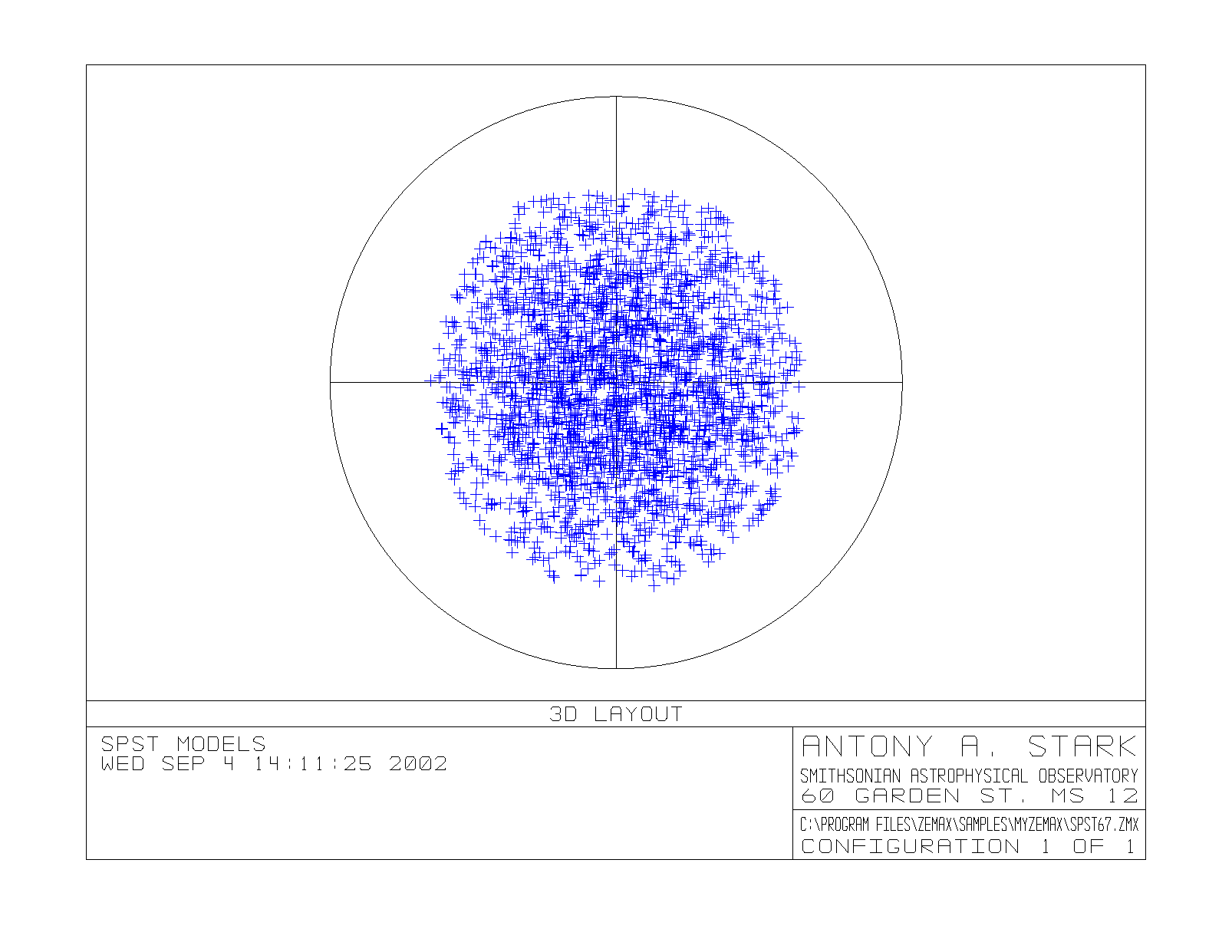

	Figure 16 Illumination of primary, central field

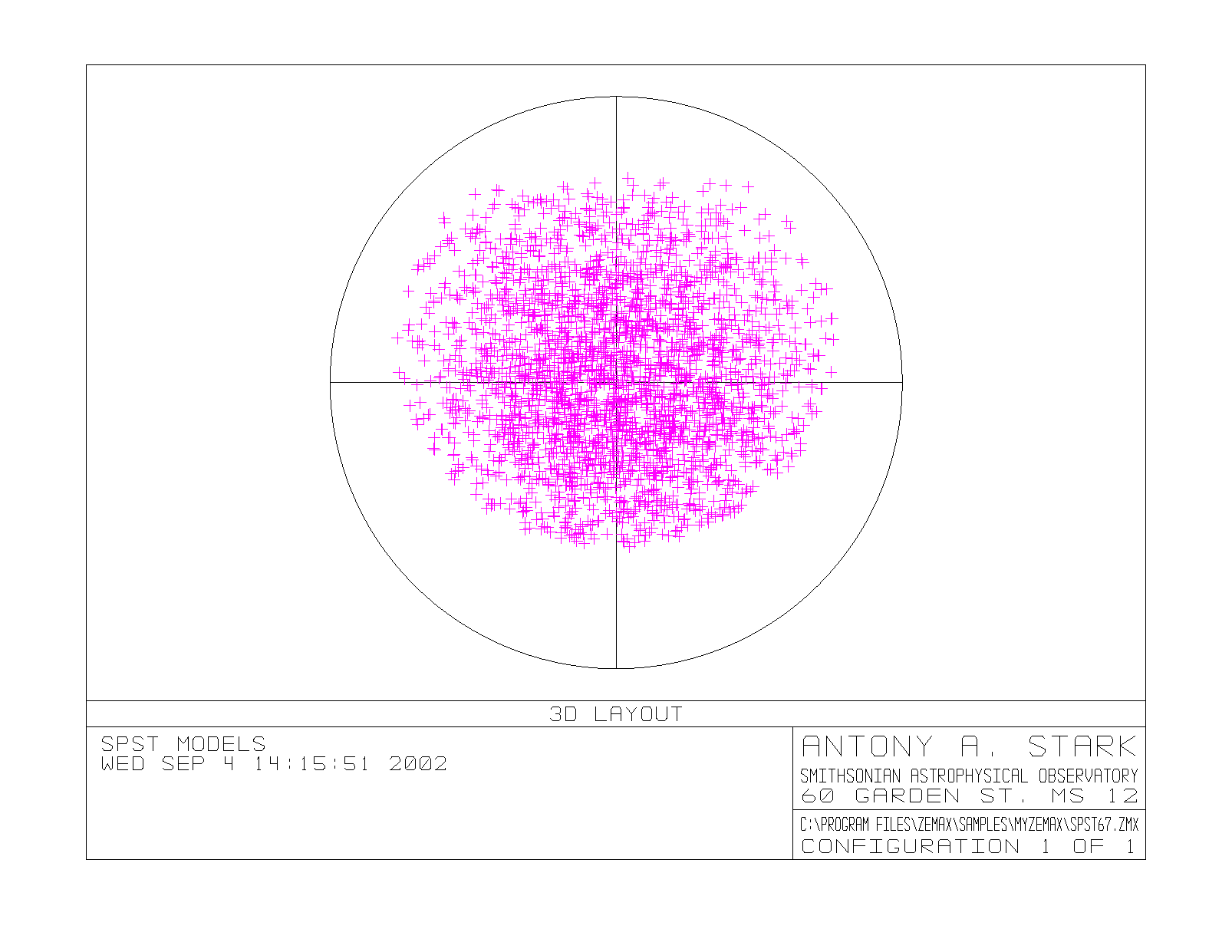

	Figure 17 Illumination of primary, field 5
	Figure 18 Illumination of primary, field 10

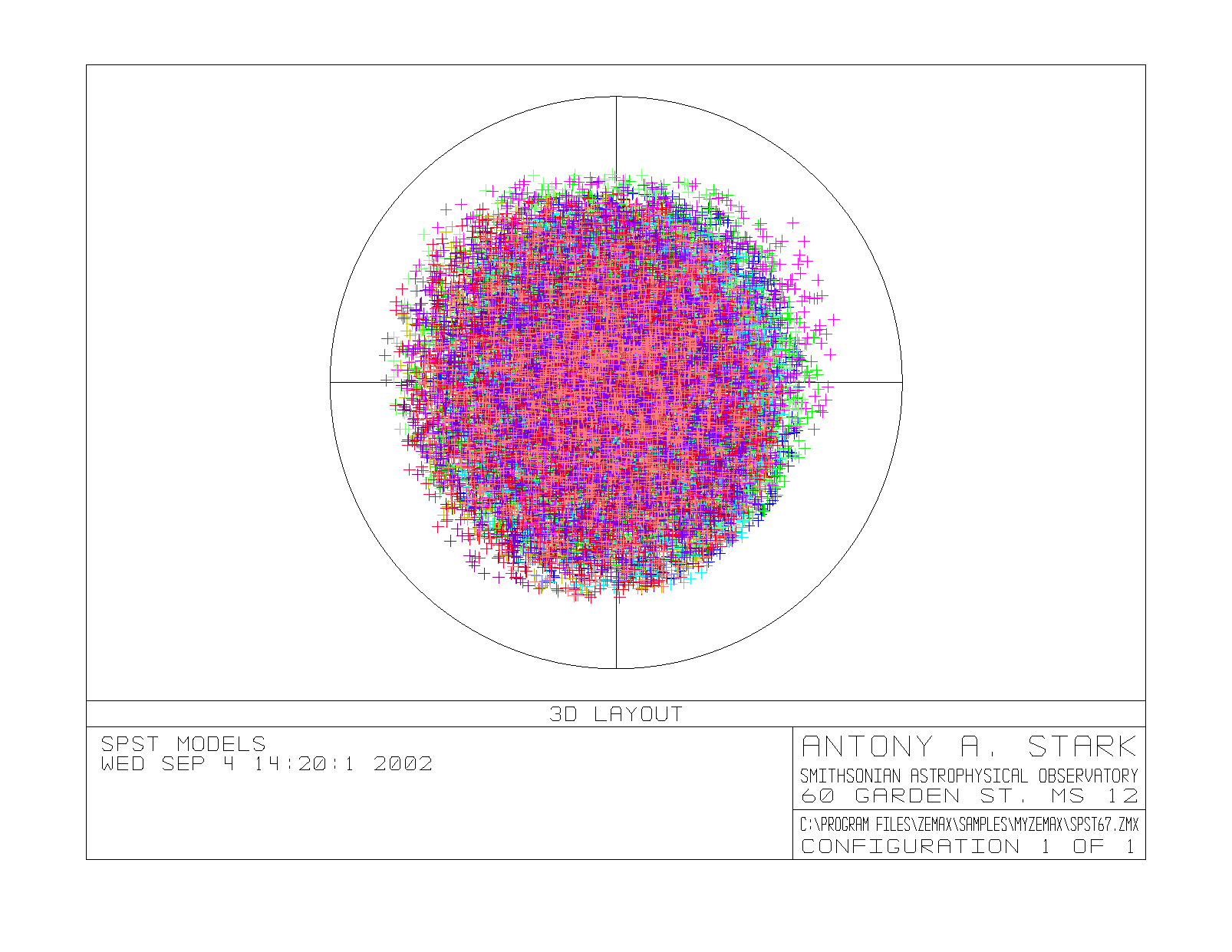

	Figure 19 Illumination of primary, all fields

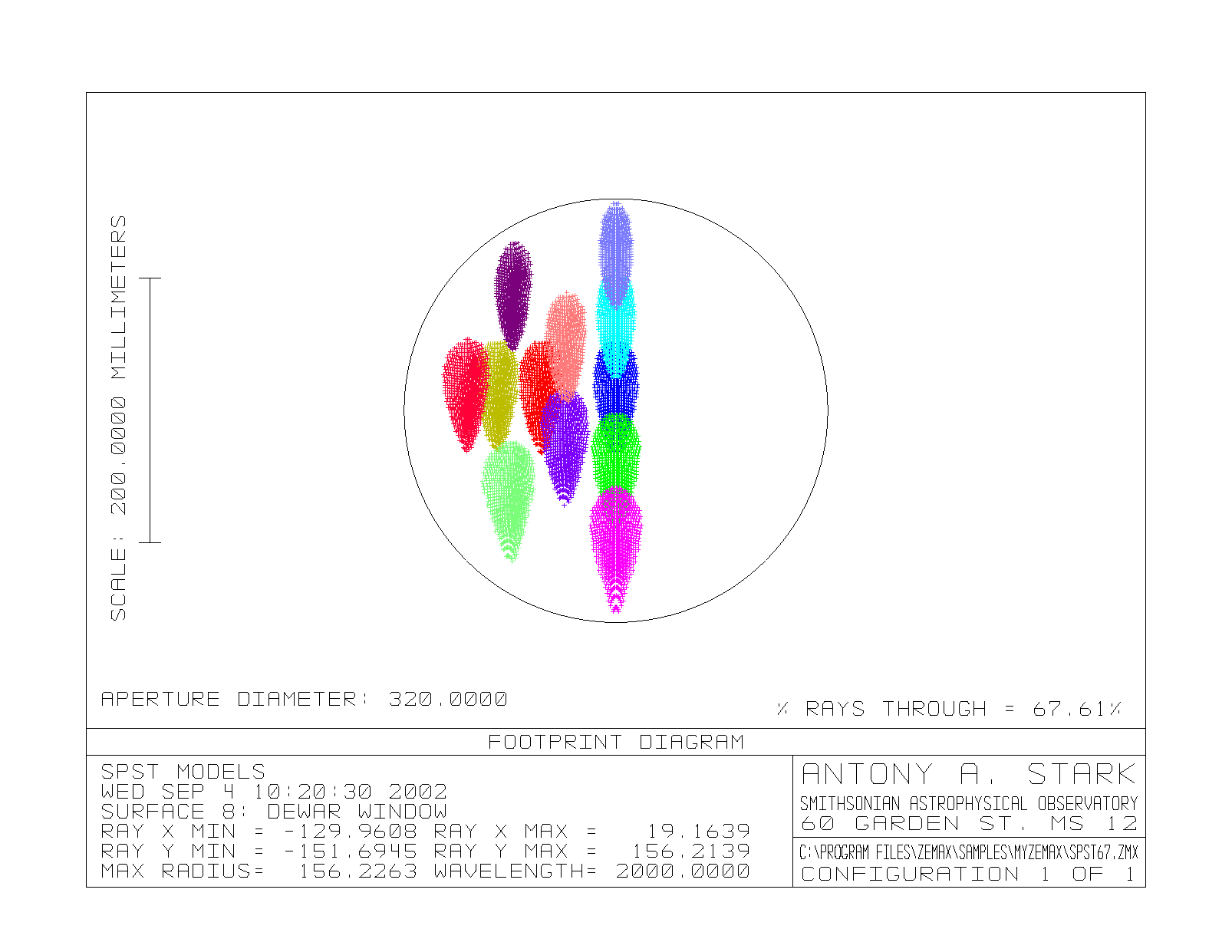

	Figure 20 Intersection of rays with dewar window

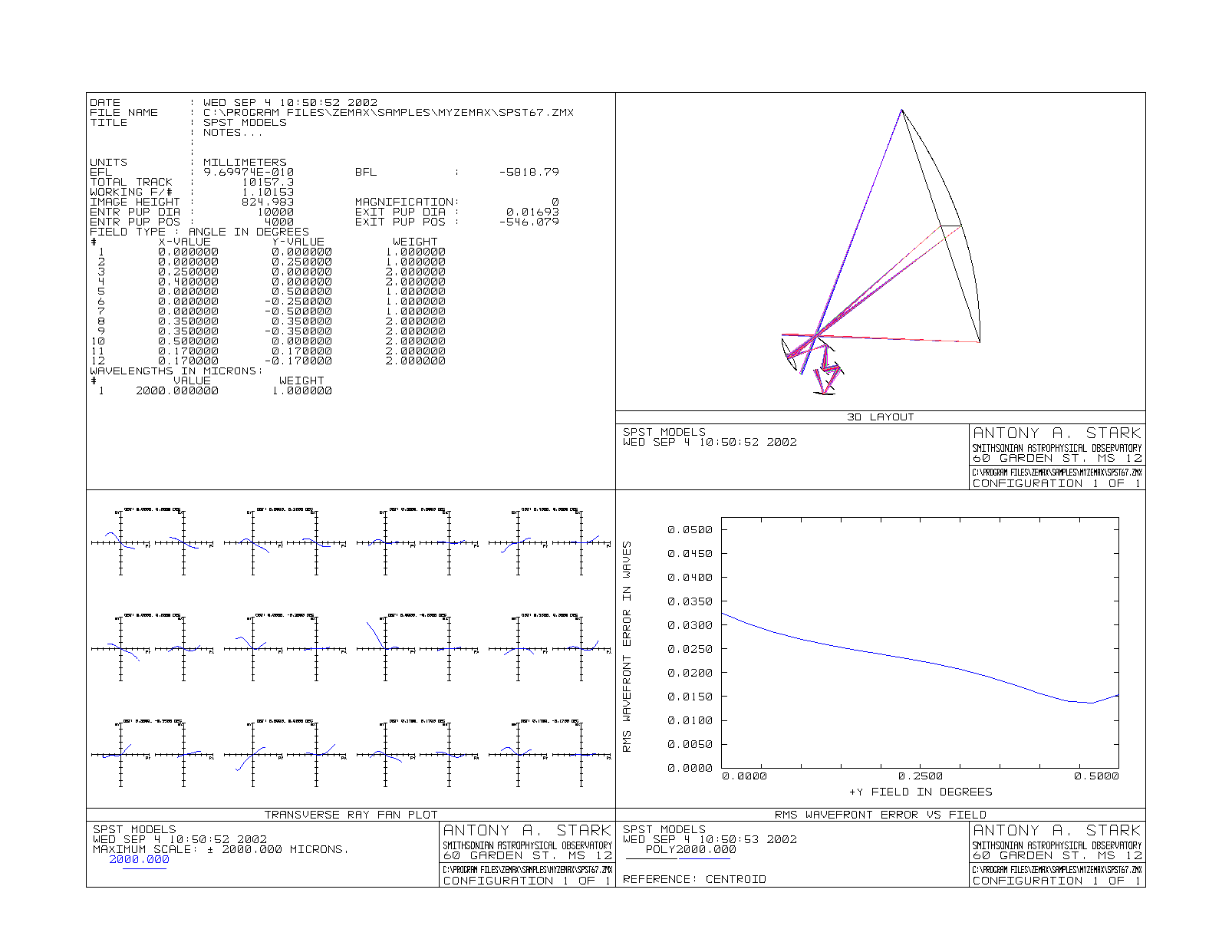

	Figure 21 ZEEMAX Report 4
