It is not always possible to separate individual young stars in clustered regions with single dish bolometer observations. The SMA has been crucial in identifying and characterizing very young cluster members in nearby regions, as well as identifying small pre-stellar cores (Lee et al. 2006, 2007; Teixeira et al. 2007). This capability allows for a more complete stellar census when combined with other data, in particular infrared observations. Such observations allow the star formation history and efficiency to be accurately determined, information that is extremely important for testing star formation theories of cluster formation, the dominant star formation mode.

IRAS 16293-2422 is a relatively isolated system within the Ophiuchus molecular cloud (160 pc). It has been known for many years to be a binary of separation 5" (800 pc) and to exhibit numerous bright molecular lines. These properties make it an ideal source for targeted SMA studies. Results include the separation of one of the pair into a close binary system of separation 0.5" (Chandler et al. 2005); the study of infall motions around each member of the wide binary (Takakawa et al. 2007); the identification of the driving source of a large scale outflow (Yeh et al. 2007); and the identification of the very different chemical histories associated with each source (Kuan et al. 2004; Bisschop et al. 2008). Recent eSMA observations reveal that toward one member most molecular lines are seen in absorption on very small scales (Frieswijk et al., in prep; Figure 4).

Click here for larger view

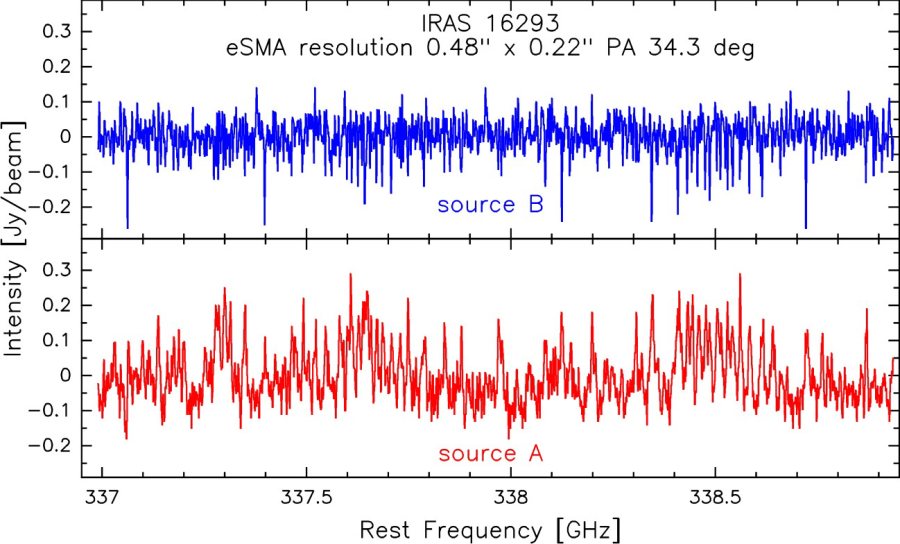

Figure 4: eSMA observations of the multiple system IRAS 16293. The figure shows the full 2 GHz wide spectrum near 338 GHz toward the main components, labeled A (bottom) and B (top). The 338 GHz spectral band toward A is completely filled with lines, mostly CH3OH (the closely spaced line forest seen in the lower panel). At the continuum peak of B, many narrow lines are seen only in absorption (upper panel), a result only seen with the resolution provided by the eSMA (about 0.3") (Frieswijk et al. in prep.).

References:

S. E. Bisschop, J. K. Jørgensen, T. L. Bourke, S. Bottinelli, E. F. van Dishoeck, An interferometric study of the low-mass protostar IRAS 16293-2422: small scale organic chemistry, 2008, A&A, 488, 959

T. L. Bourke, A. Crapsi, P. C. Myers, N. J.II Evans, D. J. Wilner, T. L. Huard, J. K. Jørgensen, C. H. Young, Discovery of a Low Mass Bipolar Molecular Outflow from L1014- IRS with the Submillimeter Array, 2005, ApJ, 633, L129

C. Brinch, A. Crapsi, J. K. Jørgensen, M. R. Hogerheijde, T. Hill, A deeply embedded young protoplanetary disk around L1489 IRS observed by the submillimeter array, 2007, A&A, 475, 915

C. Brinch, J. K. Jørgensen, M. R. Hogerheijde, The kinematics of NGC1333-IRAS2A - a true Class 0 protostar, 2009, A&A, 502, 199

C. Chandler, C. L. Brogan, Y. L. Shirley, and L. Loinard, IRAS 16293-2422: Proper Motions, Jet Precession, the Hot Core, and the Unambiguous Detection of Infall, 2005, ApJ, 632, 371

X. Chen, T. L. Bourke, R. Launhardt, T. Henning, SMA CO(2-1) Observations of CG30: A Protostellar Binary System with a High-Velocity Quadrupolar Molecular Outflow, 2008, ApJ Letters, 686, 107

X. Chen, H. G. Arce, Q. Zhang, T. L. Bourke, R. Launhardt, M. Schmalz, T. Henning, L1448 IRS2E: A candidate first hydrostatic core, 2010, ApJ, 715, 1344

J. K. Jørgensen, T. L. Bourke, P. C. Myers, F. L. Schoier, E. F. van Dishoeck, and D. J. Wilner, Probing the Inner 200 AU of Low-mass Protostars with the Submillimeter Array: Dust and Organic Molecules in NGC1333-IRAS 2A, 2005, ApJ, 632, 973

J. K. Jørgensen, T. L. Bourke, P. C. Myers, J. Di Francesco, E. F. van Dishoeck, C.-F. Lee, N. Ohashi, F. L. Schoeier, S. Takakuwa, D. J. Wilner, and Q. Zhang, A Submillimeter Array Survey of Low-Mass Protostars I. Overview of Program: Envelopes, Disks, Outflows and Hot Cores, 2007, ApJ, 659, 479

J. K. Jørgensen, E. F. van Dishoeck, R. Visser, T. L. Bourke, D. J. Wilner, and P. C. Myers, PROSAC: A Submillimeter Array Survey of Low-Mass Protostars. II. The mass evolution of envelopes, disks and stars from the Class 0 through I stages, 2009, A&A, 507, 861

Y.-J. Kuan, H.-C. Huang, S. B. Charnley, N. Hirano, S. Takakuwa, D. J. Wilner, S.-Y. Liu, N. Ohashi, T. L. Bourke, C. Qi, and Q. Zhang, Organic Molecules in Low-Mass Protostellar Hot Cores: Submillimeter Imaging of IRAS 16293-2422, 2004, ApJ, 616, L27

C.-F. Lee, P. T.P. Ho, H. Beuther, T. L. Bourke, Q. Zhang, N. Hirano, H. Shang, Infall and Outflow around the HH 212 protostellar system, 2006, ApJ, 639, 292 (17)

C.-F. Lee, P. T.P. Ho, A. Palau, N. Hirano, T. L. Bourke, H. Shang, Q. Zhang, Submillimeter arcsecond-resolution mapping of the highly collimated protostellar jet HH 211, 2007, ApJ, 670, 1188

C.-F. Lee, Y.-Y. Mao, B. Reipurth, Infall and rotation motions in the HH 111 protostellar system: A flattened envelope in transition to a disk?, 2009, ApJ, 694, 1395

N. Hirano, S.-Y. Liu, H. Shang, P. T. P. Ho, H.-C. Huang, Y.-J. Kuan, M. J. McCaughrean, and Q. Zhang, SiO J=5-4 in the HH211 Protostellar Jet Imaged with the SMA, 2006, ApJ, 636, L141

D. Lommen, J. K. Jørgensen, E. F. van Dishoeck, A. Crapsi, SMA observations of young disks: separating envelope, disk, and stellar masses in class I YSOs, 2008, A&A, 481, 141

N. Phan-Bao, B. Riaz, C.-F. Lee, Y.-W. Tang, P. T. P. Ho, L. M. Eduardo, J. Lim, N. Ohashi, H. Shang, First Confirmed Detection of a Bipolar Molecular Outflow from a Young Brown Dwarf, 2008, ApJ Letters, 689, 141

S. Takakuwa, N. Ohashi, T. Bourke, N. Hirano, P. T. P. Ho, J. Jørgensen, Y.-J. Kuan, D. Wilner, S. C. C. Yeh, Arcsecond-Resolution Submillimeter HCN Imaging of the Binary Protostar IRAS 16293-2422, 2007, ApJ, 662, 431

P. S. Teixeira, L. A. Zapata, C. J. Lada, A dense micro-cluster of Class 0 protostars in NGC 2264 D-MM1, 2007, ApJ, 667, L179

S. Wolf, A. Schegerer, H. Beuther, D.L. Padgett, K.R. Stapelfeldt, Submillimeter Structure of the Disk of the Butterfly Star, 2008, ApJ Letters, 674, 101

S. C. C. Yeh, N. Hirano, T. L. Bourke, P. T. P. Ho, C.-F. Lee, The CO Molecular Outflows of IRAS 16293-2422 Probed by the Submillimeter Array, 2007, ApJ, 675, 454
